Highlights of AUTEL MaxiBAS BT506:
1. All the following Autel Tablets supports Battery Test via work with Autel BT506: 808 range, 906 range, 908 range, Elite and Ultra range
2. Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
3. Test 6- and 12-volt batteries: 100 – 2000 CCA
4. Test 12- and 24- cranking/charging systems
5. Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
6. Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
7. Work with Phone, English Version
Autel MaxiBAS BT506 Description:
The Autel BT506 does not have a screen! To perform testing and display test results the BT506 must be used with an Autel MaxiSys tablet or other smart devices (free iOS or Android apps available).

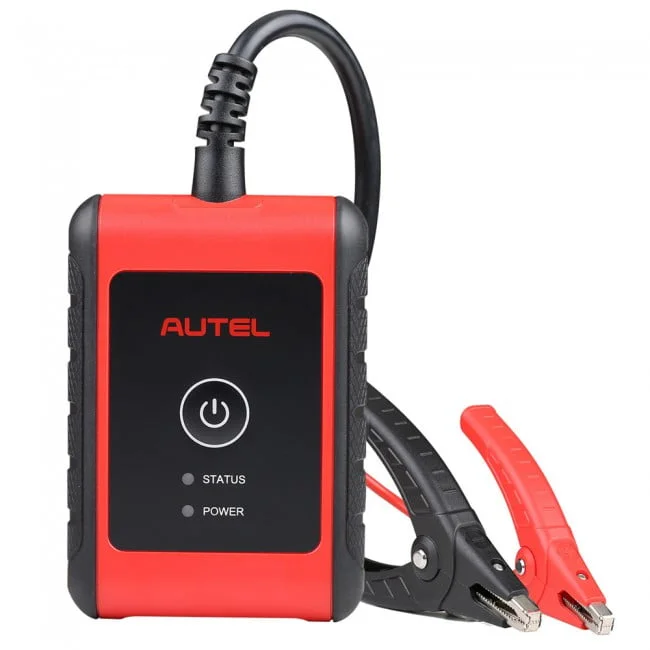

AUTEL MaxiBAS BT506 is a battery and electrical system analysis tool that enables technicians to view the health status of vehicle’s battery and electrical system. It is not an average battery tester because it measures not only the state of charge but also the battery state of health including its capacity, its ability to maintain and store the energy. Using adaptive conductance (an advanced battery analysis method), AUTEL MaxiBAS BT506 can produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determine a battery’s true health.
Click here to download Autel BT506 User Manual.
Free Download Autel-MaxiBAS-comparison-chart. PDF, click here. Or you can check here for the comparison list.
Download Free App from Google Play and the App Store
The Autel MaxiBAS BT506 is a new app-based battery analysis tool developed by Autel.
Download the free and easy-to-use mobile app, available for iOS and Android devices, and use it with the BT506 to perform testing and display test results.
BT506 has positive and negative alligator clamps which are polarity protected, so even if you reverse the clamps and put the negative on the positive terminal, it is OK. In fact, the LED on the tester is color coded to alert the users of connection and testing status, so the testers will flash red to alert you that you have made the error.
Battery Health Report / Temperature Compensation / Cloud-based Service
Battery Ratings: CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
Test Flooded, AGM, AGM_Spiral, EFB, and GEL Batteries
In-vehicle testing of Battery, Starter, Charging system voltage (not amps)
Out-of-vehicle Battery testing
Test 6- and 12-volt Batteries: 100 – 2000 CCA
Test 12- and 24-volt Cranking/Charging Systems
Cranking And Charging System Test
BT506 Battery Tester can test battery and also 12- and 24-volt Cranking/Charging Systems( starter and alternator), Same as BT608.
1. In-Vehicle Test:
* Battery Test:
With the clear guidance on the screen, you can do the battery test. And the battery test results include a color-coded result summary, a list of test data such as SOC, Voltage, Measure Capacity, and repair tips.
Starter Test: Follow the on-screen instructions, start the engine and let it idle. Then the test results of the cranking system will display on the screen which include starting voltage, starting current and starting time.
* Generator Test:
Through the alternator test, technicians are able to check the load voltage/current, no load voltage/current, and ripple. The direct test result on the screen will tell you whether the charging is normal, and whether there is an issue with the output or ripple, which helps avoid damaging the battery and shortening its life due to overcharging or incomplete charging.
2. Out-Vehicle Test:
Out-vehicle test is used to test the condition of batteries that are not connected to a vehicle. This function aims to check the health status of the battery only.
3. Automativally Identify Battery Type:
Clamp the Autel MaxiBAS BT506 to a in-vehicle battery, the vehicle information will be automatically populated and its battery information tab will pop up from the bottom of the screen, select the correct battery parameters on the screen to process the diagnosis.
* BatteryTypes: FLOODED, AGM, AGM SPIRAL, EFB, and GEL;
* Standards: CCA, SAE, CA, EN, IEC, DIN, JIS and MCA.
