Highlight of XPROG
Especially For BMW CAS4/CAS3, FRM module read and write.
System Requirement:Windows XP/WIN7 32bits Only (close an-virus program,or soft ware attacked)
Add new authorization: AUTH-0025 Authorized 11/4/2014
Note For XPROG
1.Please do not update software version or device will be damaged
2.Disconnect internet when run soft ware ,otherwise device will be damaged.
3.Don’t update online
4.Please unistall all old Xprog version clearly ,and make sure install Our XPROG 5.55 only into your PC only .
Please read and following those tips when installing Xprog V5.55,otherwise hardware can not use any more .

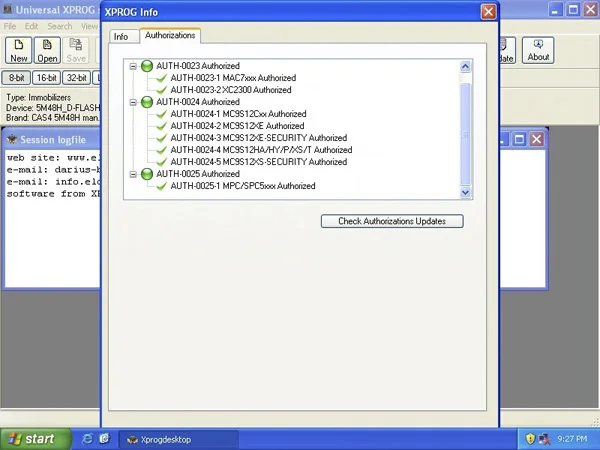

XPROG-M V5.55 Authorizations:
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BM EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, …) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, …) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, viewange mileage,chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx

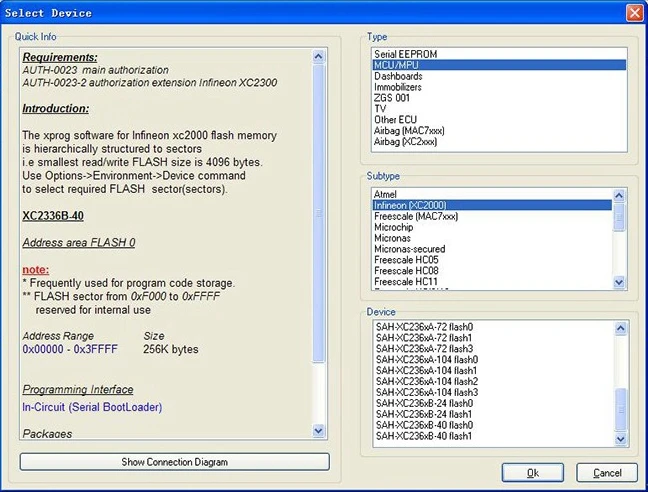

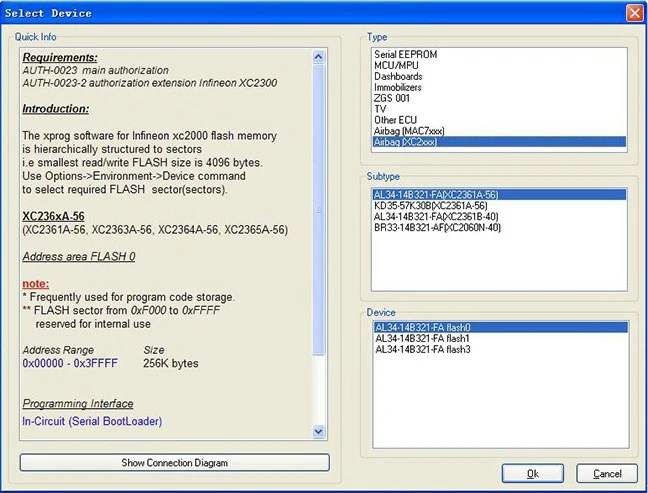

AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY

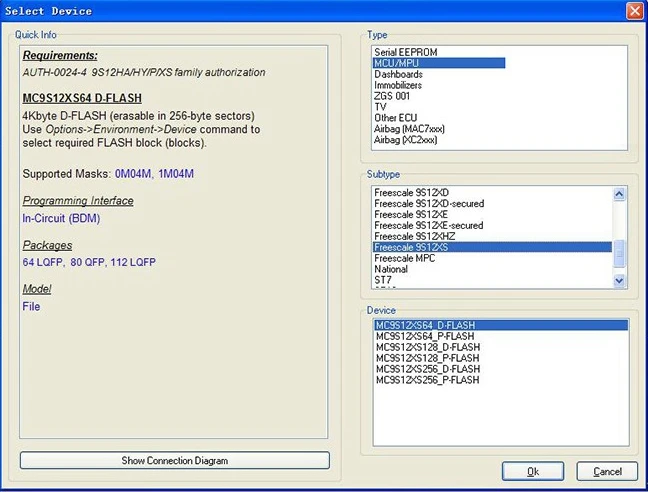

AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx
Authorized 11/4/2014
XPROG-M Adapters:
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Additional adaptor for 5M48H P-Flash
Computer Requires:
Processor: INTEL Pentium 60MHz or faster (depends on operating system)
Memory (RAM): 64MB (depends on operating system)
Hard drive: 20MB free space
Communication: One free physical COM or USB port
Operating system: Microsoft Windows NT/ME/2000/XP/VISTA/WIN7 32Bits Only
NB: This a highly advanced programming tool intended for technically proficient professionals who have experience with these types of products and the limitations. Please do not buy this if you require technical support on functionality.
Windows versions supported
It is recommended to install on Windows 7. Windows 10, Windows 11 64 bit requires more technician proficiency to install drivers, due to Driver Signature Verification preventing driver files from being installed. Solution:
You must enable the F8 key boot menu (Admin Command Prompt and type bcdedit / set {default} bootmenupolicy legacy) from there restart then press F8 and choose “Disable Mandatory Control of Driver Signatures”.
Run as cmd administrator.
bcdedit.exe -set loadoptions DDISABLE_INTEGRITY_CHECKS => ENTER
bcdedit.exe -set TESTSIGNING ON => ENTER
restart pc..
Now install the 64 bit driver manually and choose the directory win_x64 to indicate where the driver is located, click on “Install anyway” when warning shows.
