Autel G-Box 3 Programming Add-on Tool for Autel IM508, IM608 & KM100

Autel G-Box 3 Key Programming Add-on for IM608, IM508 and KM100

• To use with both the Autel Maxi IM608 and Autel Maxi IM508. The Autel G-Box 3 is designed to be used on Mercedez-Benz, BMW with DAS3 CAN EIS/EZS in AKL, and recent model VW/Audi MQB platform vehicles . It helps to reduce the time for reading the ECU data from W204 and W207 EISs by over 85%. It can read/write to Bosch ECU on BMW F series and VW MQB platform.
• The Autel G-BOX 2 uses fast mode on vehicle and bench when all keys for Mercedes-Benz vehicles using the DAS3 EIS/EZS are lost. The use of the G-BOX2 reduces the time needed and eliminates the process of insertion and removal.
• The Autel G-BOX 2 can read and access most engines manufactured by Bosch including EDS/ MEx17 series engines used in for BMW and for Volkswagen Vehicles. This capability supports the ability to perform adaptions when all keys are lost and engine is replaced.
• The G-BOX2 is compatible with the Autel’s advanced diagnostic tablets support IMMO and key programming functions.

Autel G-Box 3 Main Features:

• 1. For Mercedes Benz All Keys Lost, Faster Password Calculation
• 2. Used with IM608
• 3. Used for Faster Mercedes ECU data and EIS password calculation
• 4. For Mercedes DAS3 can EIS / EZS all keys lost
• 5. Reduce time reading W204 ECU data & W207 EIS by over 85%
• 6. No need to remove and reinsert the key for W221 & W164 after 2009 models
• 7. For BMW DME / DDE ISN reading and writing in boot mode
• 8. G-Box is compatible with both the Autel MaxiIM IM 608 and IM508 with XP400, also compatible with Auro IM600 and Auro IM100 with XP400

1. DC Port -Provides +12 DV power supply
2. Can-H Port: Universal Can Bus interface, connects with OBDII PIN6
3. K1 Port: Universal K-Line interface, connects with OBDII PIN1
4. Status Indicator: Indicates the current operating status
5. Relay Ports: Connect with dedicated relay cables
6. +12V Power Port: Universal power input/ output port
7. OBDII Connector: Connects to the vehicle’s OBDII directly or via a dedicated extension cable
8. OBDII Female Connector: Connects to the main cable of Autel Diagnostic Tool
9. Can-L Port: Universal Can Bus interface, connects with OBDII PIN14
10. K7 Port: Universal K-Line interface connects with OBDII PIN7
11. GND Port: Universal Power Input/ Output Port
12. OB15 Port: Used with dedicated BD15 Cable for reading and wrting multiple types of ECUs

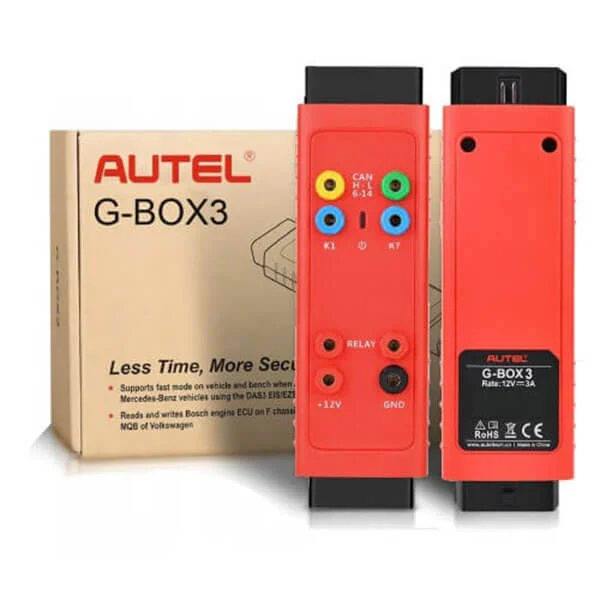

Unique to the Autel G-Box 3

The Autel G-BOX 3 is faster and more secure it also sets itself apart with its unparalleled capability for engine ECU reading/writing for Bosch MD1/MG1 across multiple brands (VAG, BMW, PSA, OPEL, etc.), a feature not available with its predecessor, the G-Box2. This makes it a pivotal tool for modern automotive diagnostics and key programming.

The Autel G-BOX3 is a cutting-edge key programming adapter designed to enhance the capabilities of Autel’s MaxiIM series tablets for automotive professionals focusing on Mercedes-Benz and BMW vehicles. With its robust support for All Keys Lost scenarios, faster password calculation, and extensive ECU compatibility, the G-BOX3 is engineered to streamline the key programming process, making it faster, more secure, and more efficient. Whether on the bench or in the field, the G-BOX3 ensures that automotive professionals have the technology they need to meet the demands of modern key programming with confidence and precision.

• 1. Connect the G-Box to the Mercedes-Benz EIS using the supplied DB15 Cable
• 2. Connect to the DC port of G-Box using a power adapter (DV 12V)
• 3. Connect the G-Box to the Autel Diagnostic Tablet

Autel G-Box 3 Package Content:

• 1pc x Autel G-BOX Accessory Tool
• 1pc x Clamp Cable
• 1pc x K-Line Cable
• 1pc x Fuse Cable
• 1pc x OBDII Extension Cable
• 1pc x DB15 Cable
