Autel Otofix D1 Diagnostic Tool (ECU Coding + Bluetooth VCI)

Original price was: R14999,00.Current price is: R12999,00.

Description

Otofix by Autel Authorised Dealer

Otofix is a new brand developed by Autel, using the industry leading Autel diagnostic software with innovative new hardware designs and powerful hardware. Otofix D1 with the same Car software brands and special functions as Autel MP808S, but with additional 8MP camera and Bluetooth at a more affordable introductory price!

Otofix D1 All Systems in-depth Diagnosis

● Read/Erase Codes and show ECU information:
Autel’s new OTOFIX D1 can read and show the specific information for the tested control unit, including unit type, version numbers. Displays detailed information of DTC records retrieved from the ECU and erases DTC records and other data from the ECU.

● Live Data:
Retrieves and displays live data and parameters from the test vehicle’s ECU.

● Active Test:
This function can test specific subsystems and components. It’s also called Actuator Tests or Bi-Directional Tests.

● ECU Coding and component calibrations

OTOFIX D1 performs complete systems diagnoses including functional tests, retrieve vehicle diagnostic information (trouble codes), freeze frame data and live data for various vehicle control systems (engine, transmission, ABS, etc.), providing its users with all the information pertinent to a vehicle’s health quickly and in an accessible, reader-friendly format

Comprehensive Service Functions

All Software functions and updates are from Autel

● Oil Service Reset:
Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;

● TPMS Service:
Quickly looks up the tire sensor IDs from the vehicle’s ECU, as well as perform TPMS programming and reset procedures after tire sensors are replaced;

● EPB Service:
Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;

● ABS/SRS Services:
Performs various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System;

● SAS Service:
erforms steering angle adjustment, clears steering sensor fault memory, and turns off steering wheel warning light;

● DPF Regeneration Service:
Clears particulate matter from the DPF filter to stabilize the filter performance.

● BMS Service:
Perform a reset on the vehicle battery for clearing the fault information and re-match the battery;

● Brake Bleed:
When your brake pedal becomes soft and inconvenient to control, this diagnostic tool can perform bi-directional tests to check the Anti-lock Braking System;

● IMMO Service:
Clear the lost car key’s information and program the new key into the ECU database to protect the user’s car from being stolen;

● Injector Coding:
Make the cylinder better identify injector after ECU or injector is replaced;

● SAS Service:
to perform calibration for the Steering Angle Sensor and clear steering sensor fault memory;

● Throttle Adaptation:
initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately

● Headlamp, Suspension, Lang change, Odometer, Seats, CHG tire size, TEC learn and WIN DR ROOF, etc

Intelligent Applications to Facilitate Data Management

● Shop Manager: manage the workshop information, customer information records, and keep test vehicle history records.

● Data Manager: OTOFIX D1 can store, print, and review the saved files. Save needed or might-be needed data for later check or problem summary.

● Notification Center: Receives the regular on-line messages from the server for system update notification or other service information.

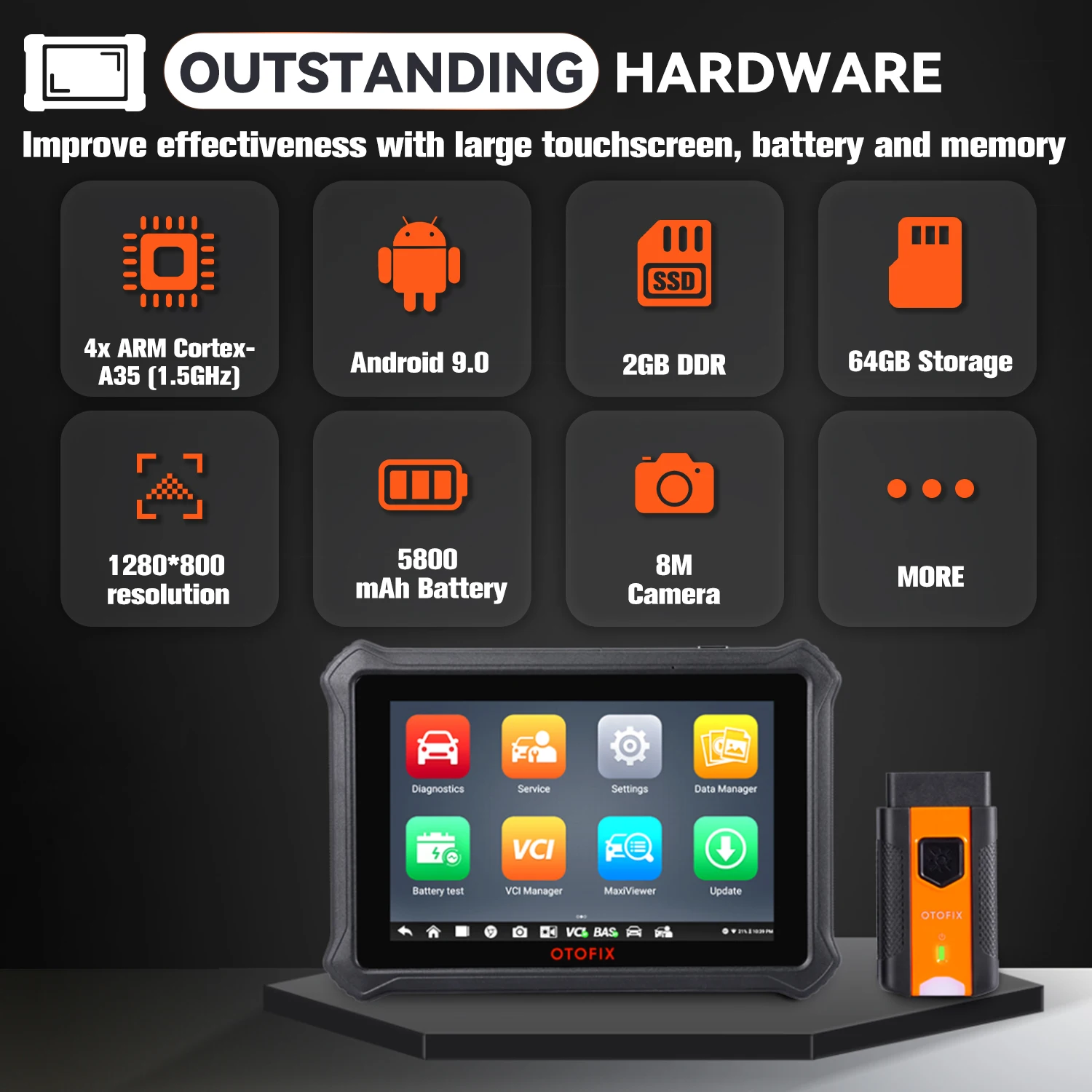

Outstanding Hardware

● 7 inch touchscreen with 1280*800 resolution gives you a smooth experience

● Work comfortably for long periods with a 5800mAh battery

● 64GB memory allows you to save all the reports you need

Intelligent Applications to Facilitate Data Management

Shop Manager: manage the workshop information, customer information records, and keep test vehicle history records.

Data Manager: OTOFIX D1 can store, print, and review the saved files. Save needed or might-be needed data for later check or problem summary.

Notification Center: Receives the regular on-line messages from the server for system update notification or other service information.

Packing List

1 x Main Unit Otofx D1
1 x OTOFIX V1 BT connector
1 x Type C SUB Cable
1 x Power Adapter
1 x USB to Ethernet Adapter
1 x Quick Reference Guide
1 x Packing List
1 x Carrying Case

Additional information
Weight 2,5 kg
Dimensions 35 × 30 × 7 cm
